General Specifications

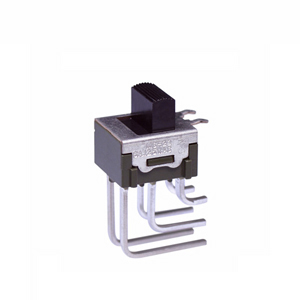

| Part No. | MS23BSW40 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MSN23BSW40 New PN Available to Order : 2024/01/15 |
| Name | SLIDE SWITCHES |
| Series | MS |
| Poles | DPDT |
| Circuits | On-Off-On |
| Current Rating | 6A (AC) |
| Rating | 6 | Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Keywords | Epoxy Sealed Terminals |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Type | 8.2mm Wide for Double pole |
| Termination Style | Vertical PC Terminals |
